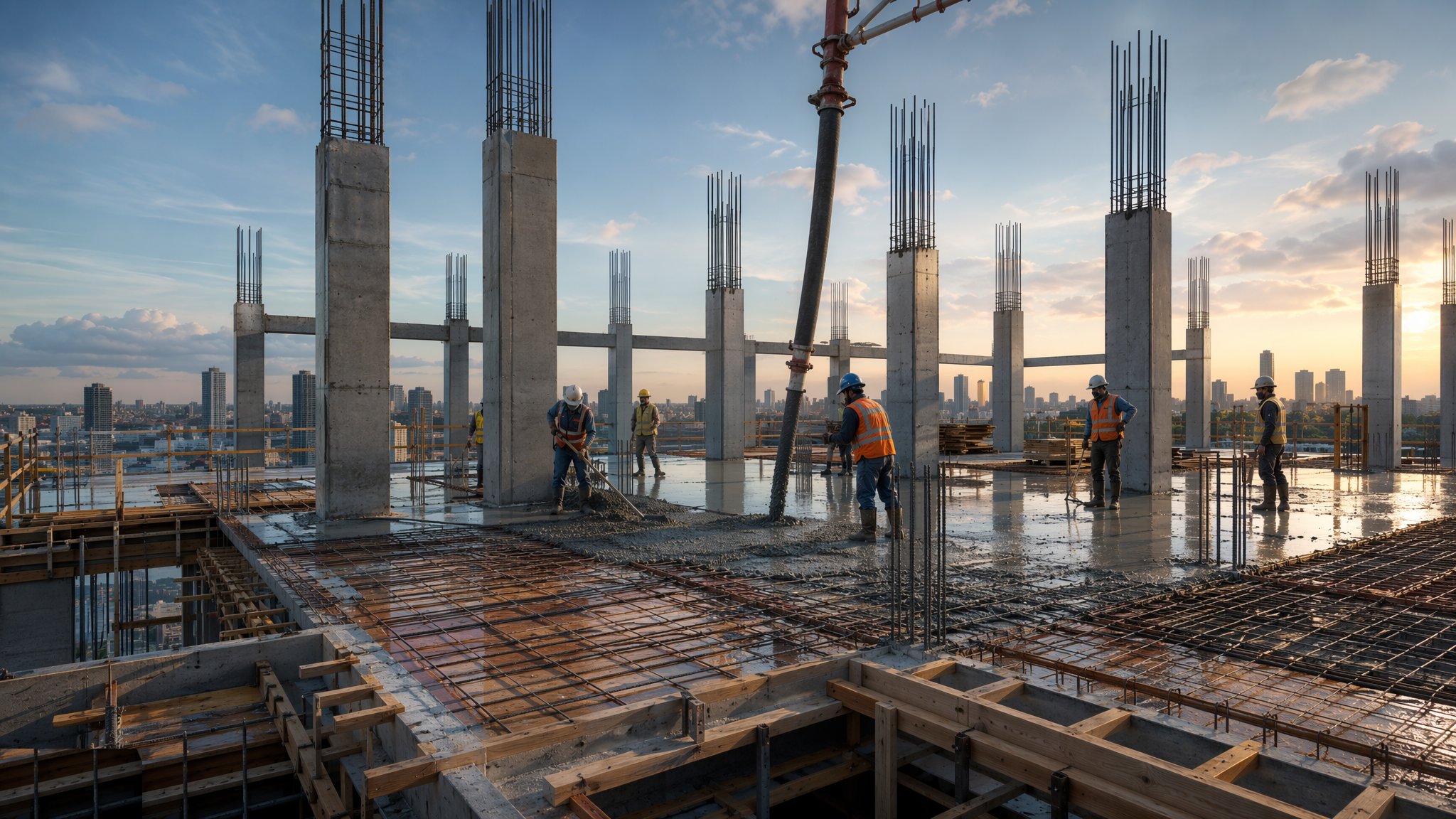

What is Beam and slab frames?

The beam and slab frame is the classical concrete structure: one-way slabs span onto beams, beams onto columns, columns to the foundations. It costs more formwork labour than a flat slab — every beam is a formed soffit and two sides — but buys stiffness, longer spans, higher load capacity and simpler, more robust shear behaviour. Where loads are heavy, spans are long, or the structure must transfer columns at podium level, beams are not a style choice, they are the calculation.

Transfer structures are the beam frame's home territory. Where a tower's column grid cannot continue through an open ground floor — a lobby, retail, a station box — deep transfer beams or a transfer slab collect the columns above and deliver them to the supports below. These are among the heaviest reinforced elements on any site: congested cages, mass pours with thermal control, and striking times measured in weeks against structure-cured cubes. They are designed with reserve and built with ceremony, because there is no redundancy if a transfer element underperforms.

The site's quality battles are congestion and sequencing. Beam-column junctions stack bars in three directions — the fixability of the cage must be rehearsed on the drawings before the steel arrives, or the gang improvises laps in the worst possible place. Pouring sequence matters: columns and walls first to a designed kicker level, then beam soffits, then slab — each stage inspected before the next hides it. Done well, a beam frame is the most forgiving concrete structure to live with; done loosely, the honeycombing and cover failures concentrate exactly where the forces do.

How does Beam and slab frames work, step by step?

Step 1: Rehearse the cage and the pour sequence

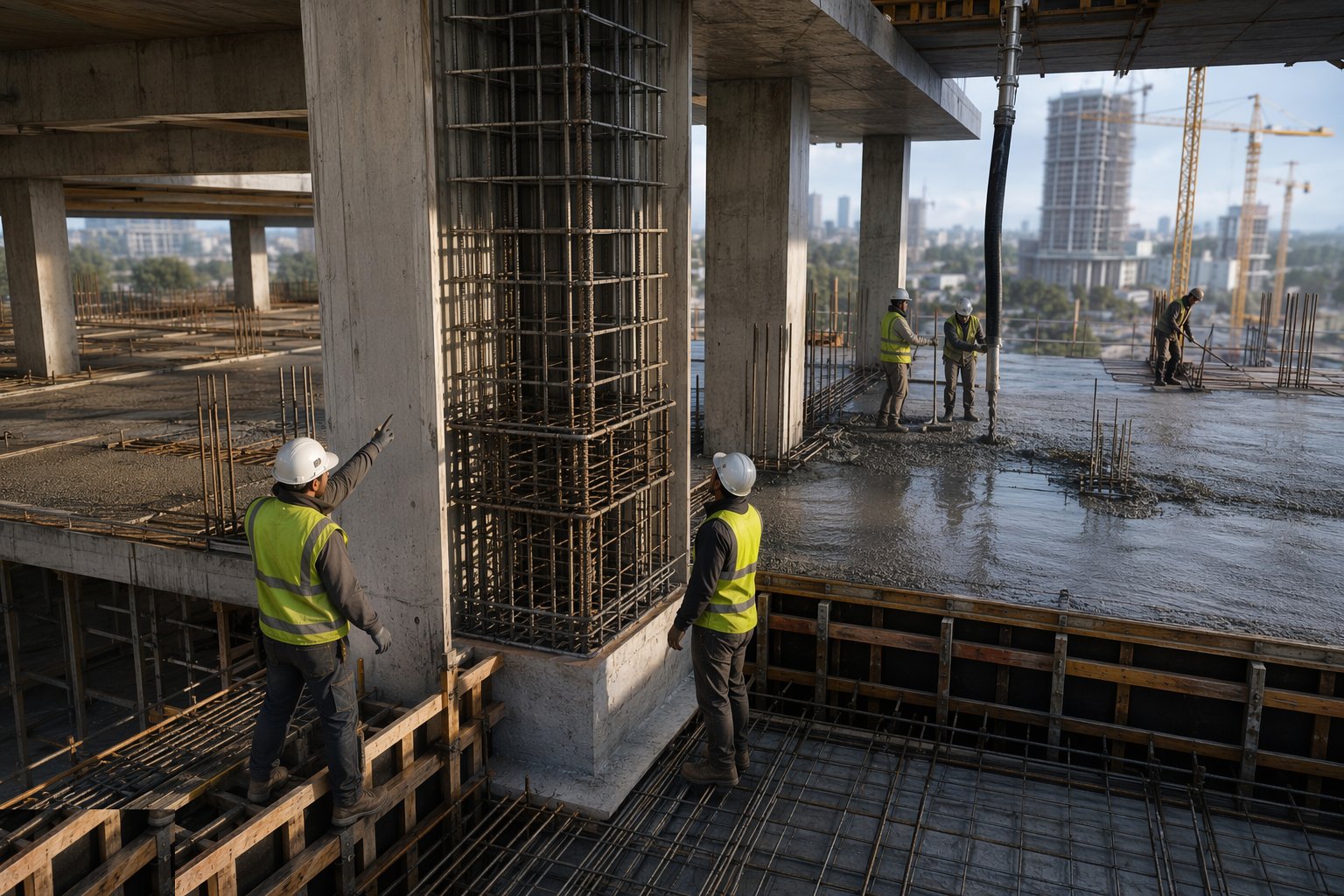

Rehearse the cage and the pour sequence — Beam and slab frames, step 1

Beam-column junctions are reviewed for fixability — bar diameters, bends and laps against the physical space — and the pour breaks are designed: columns to kicker, then beams and slabs. Congested junctions get concrete mix and vibration plans, because a poker that cannot reach is honeycomb you cannot see.

Step 2: Cast columns and walls to kicker level

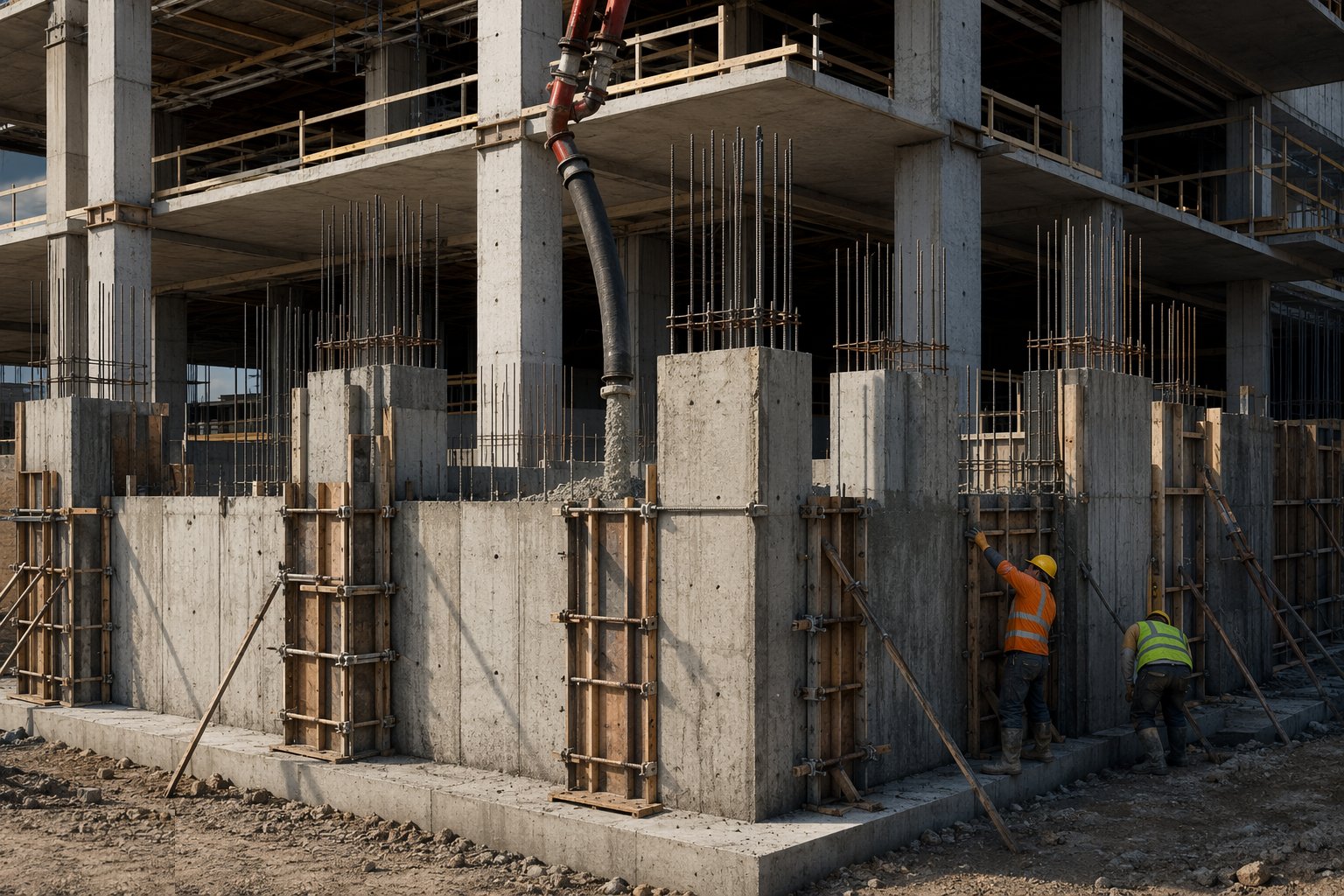

Cast columns and walls to kicker level — Beam and slab frames, step 2

Column and wall forms are set plumb from the grid on prepared kickers, reinforcement inspected, and concrete placed and vibrated in controlled lifts. Construction joints land at the designed levels, prepared and roughened for the next stage.

Step 3: Erect beam soffits and sides

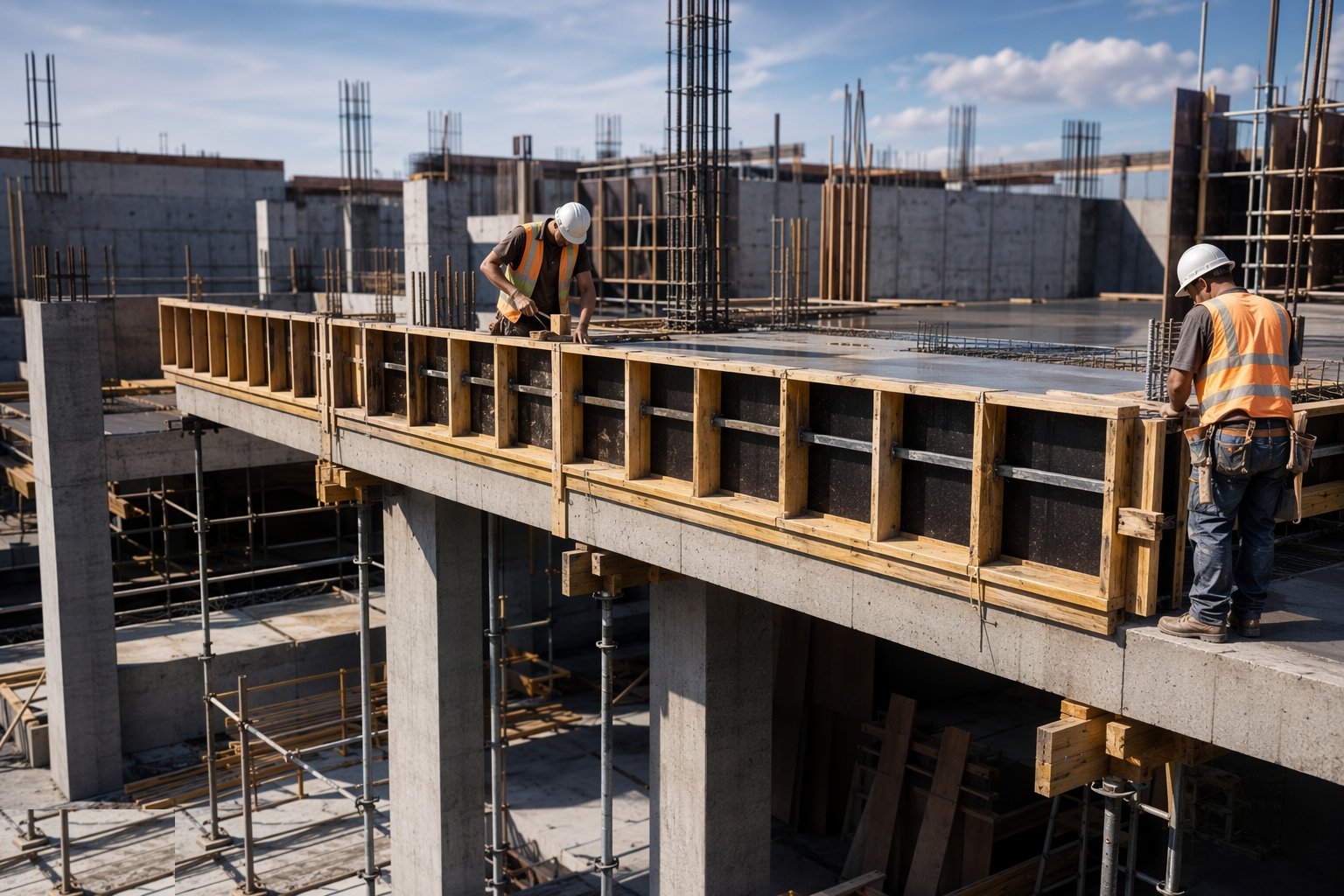

Erect beam soffits and sides — Beam and slab frames, step 3

Beam formwork is set to line, level and camber where designed, on falsework rated for the wet loads. Soffit levels are surveyed before steel — a beam soffit low by 15 mm is a cover failure and a deflection problem built in.

Step 4: Fix beam and slab reinforcement

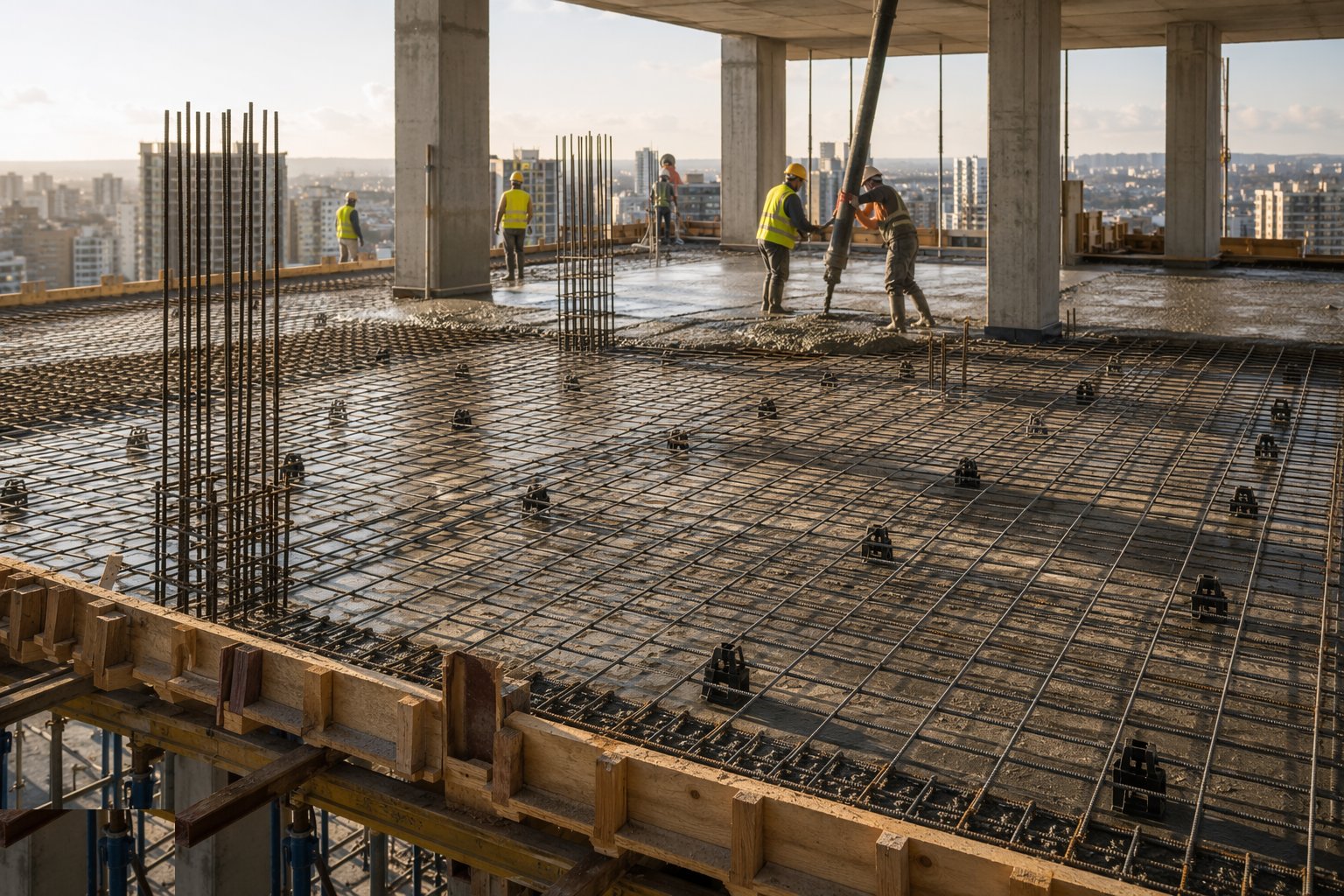

Fix beam and slab reinforcement — Beam and slab frames, step 4

Beam cages — bottom bars, top bars, links at the design pitch — are fixed with laps and anchorage per the schedule; slab mesh or mats follow on chairs. Junction zones are checked bar by bar against the drawing. The pre-pour inspection signs the concealed work before the pour releases.

Step 5: Pour in the designed sequence

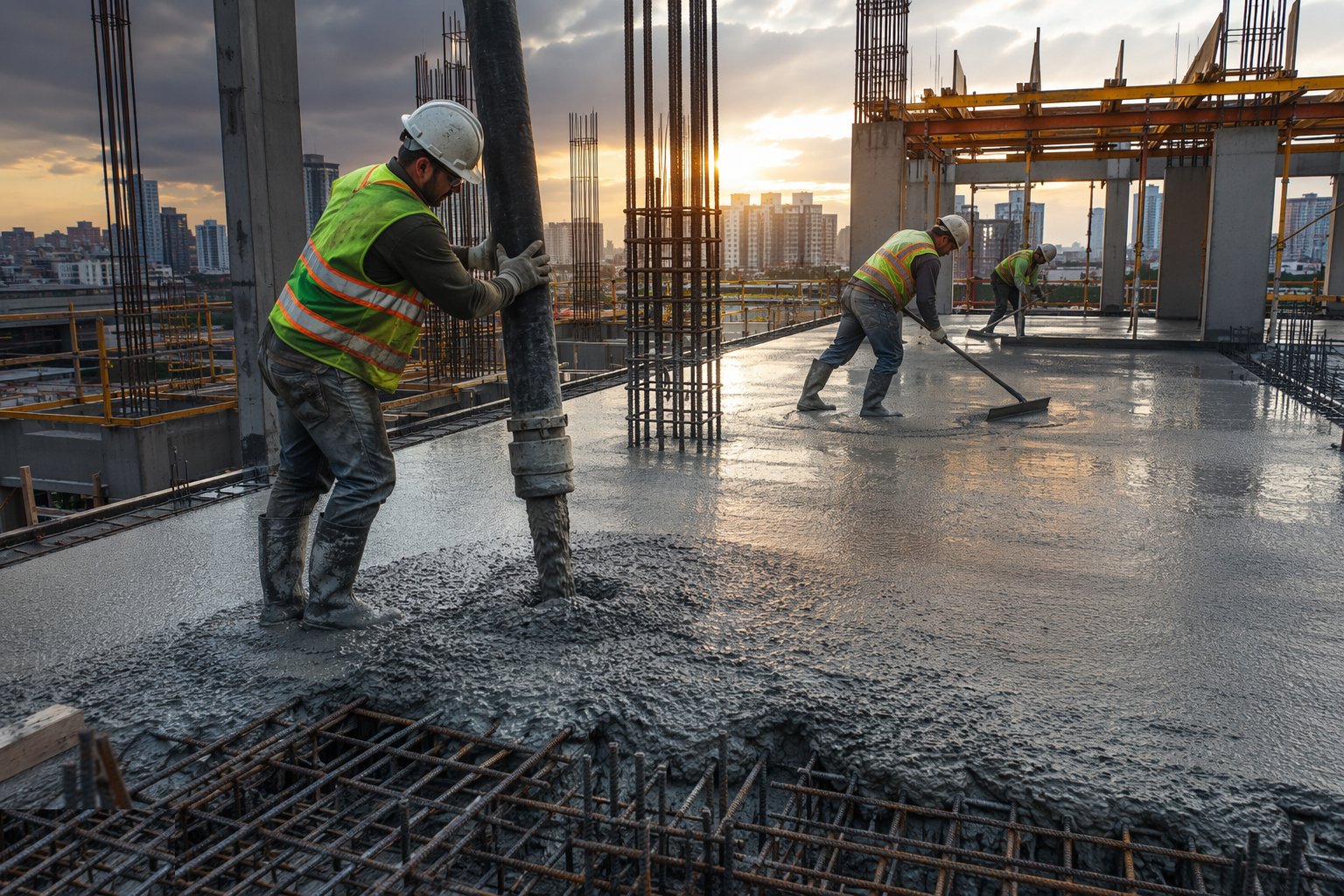

Pour in the designed sequence — Beam and slab frames, step 5

Beams are poured and vibrated full depth — layered placement with the poker reaching the soffit — then slabs follow, screeded to level. Slump and cubes per plan; construction joints only at designed positions. Around congestion, vibration is verified by sound and spill, not assumption.

Step 6: Strike by strength, not calendar — especially transfers

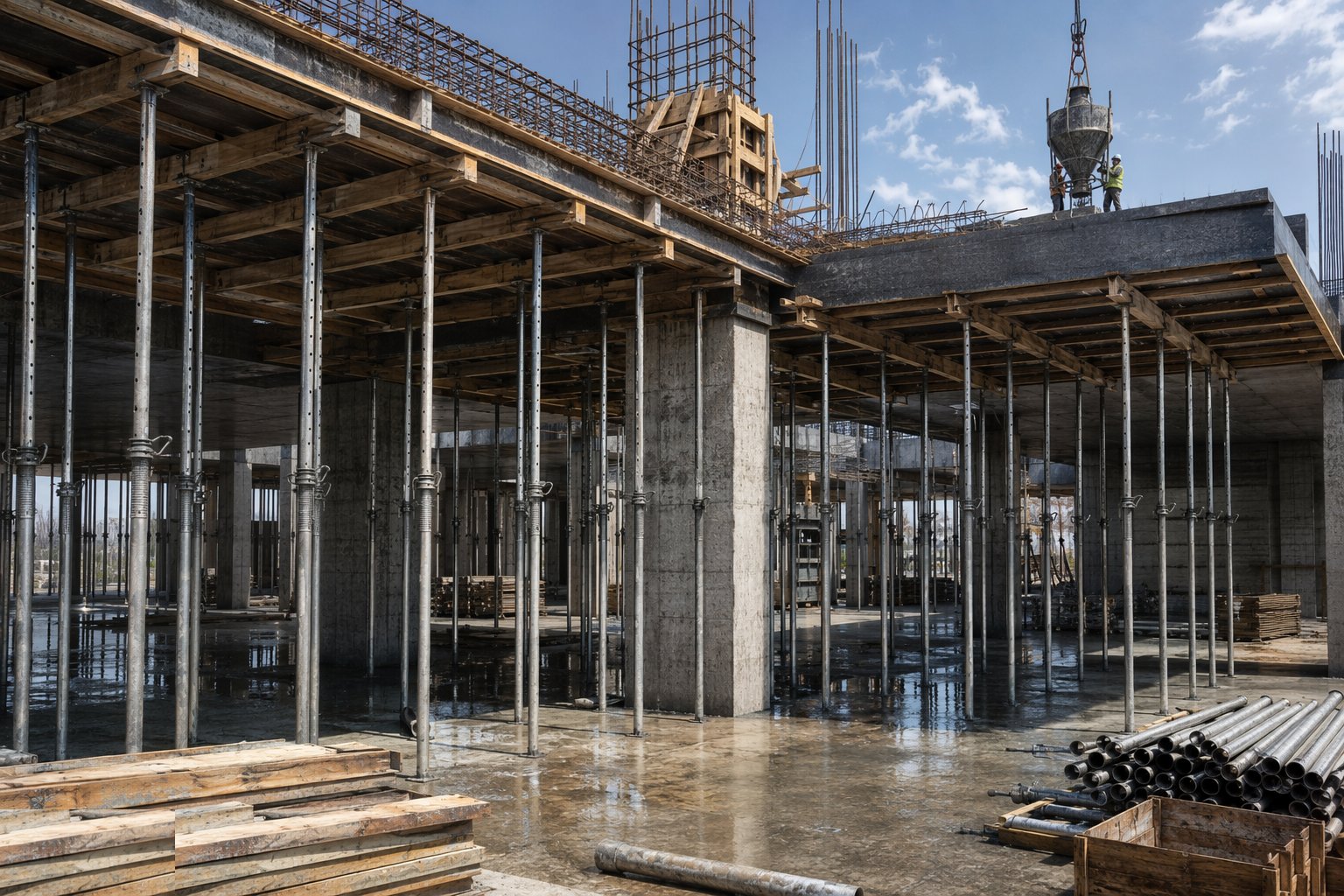

Strike by strength, not calendar — especially transfers — Beam and slab frames, step 6

Beam soffits and props stay until structure-cured cubes prove the specified strength — on transfer elements, weeks and formal sign-off. Deflection is surveyed against prediction at strike and recorded. Then forms fly, records file, and the frame climbs.

What are the benefits of Beam and slab frames?

Stiffer than flat slabs — longer spans, less deflection, better vibration behaviour
Handles heavy and irregular loads — plant rooms, transfers, podiums
Simple and robust shear behaviour — fewer hidden critical details
Beams define service zones — coordination is planned, not discovered
The only real answer for column transfer at podium level

What are the limitations of Beam and slab frames?

Formwork labour is heavy — every beam is formed, struck and refixed
Slower floor cycle than flat slab — the programme pays for the stiffness
Downstand beams eat ceiling void and floor-to-floor height
Junction congestion risks honeycombing exactly at maximum force
Transfer elements demand mass-pour and thermal discipline

What is Beam and slab frames best suited for?

Transfer structures and podium levels
Heavy-load floors: plant, archives, industrial, hospitals
Long-span floors where flat slab deflection governs
Frames where irregular grids rule out table-form repetition

What plant does Beam and slab frames need?

Formwork systems for beams, columns and slabs; falsework and props
Tower crane and concrete pump with placing boom
Poker vibrators in sizes matched to the congestion
Rebar fixing equipment and mechanical couplers for heavy bars
Thermal monitoring kit for transfer pours
Survey equipment for camber, soffit levels and deflection

How is Beam and slab frames quality-checked?

Fixability review records for congested junctions before steel arrives
Pre-pour inspection per stage: columns, beams, slabs — signed
Slump and cubes per plan; structure-cured cubes governing striking
Thermal monitoring records for transfer and mass pours
Deflection survey at strike against predicted values
