Braced and unbraced frames

Where the wind load goes decides how the steel goes up.

Last updated 2026-07-28 by the BuildPedia Editorial Team.

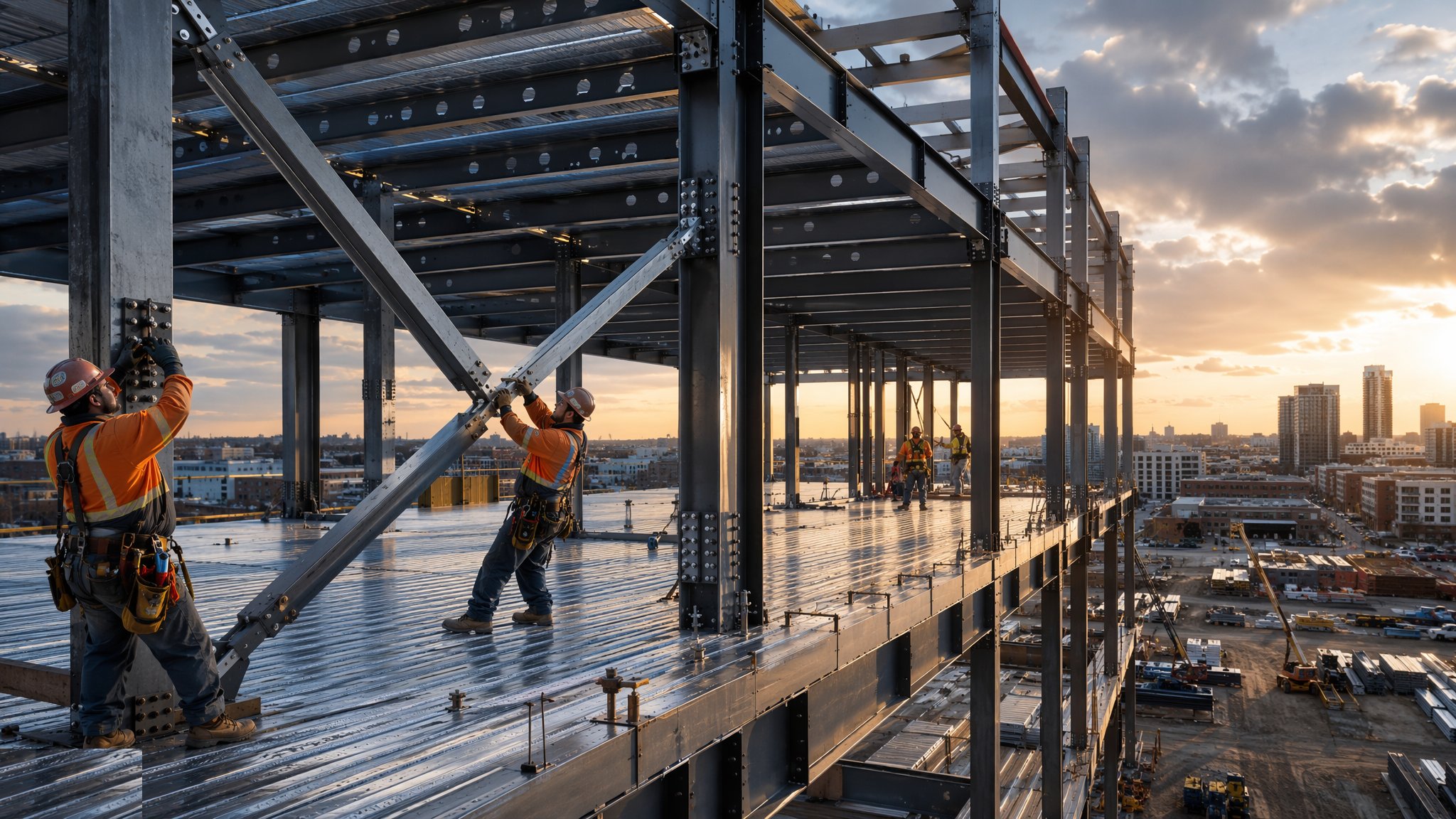

What is Braced and unbraced frames?

Every steel frame must answer one structural question before the first member is drawn: what resists the lateral load? A braced frame answers it with dedicated elements — X-bracing, K-bracing, or the concrete cores and shear walls the steel ties into — triangulating the lateral load down to the foundations. Braced frames use simple pinned connections, less steel and less connection labour, which is why they are the default for residential and commercial frames where bracing can be hidden in walls and cores.

An unbraced (moment) frame answers the same question with stiffness: rigid beam-column connections that resist lateral load through bending in the members themselves. Moment frames keep every wall free of bracing — open plans, full glazing, future flexibility — at the price of heavier members, expensive moment connections, and drift control that often governs member sizes before strength does. Sway deflection is the serviceability battle: cladding, partitions and occupants all have opinions about how much a building may lean in the wind.

The stability system rules the erection sequence, and this is where design meets the hook. A braced bay is stable the moment its bracing is connected; an unbraced bay is stable only when its moment connections are fully made. The erection method statement therefore sequences the frame so that at every stage — and critically overnight and in forecast wind — the erected steel is stable by design, not by luck. Temporary bracing and guys bridge the gap until the permanent system is complete, and the rule is absolute: nothing is released from the crane hook until its stability is assured, and nothing is left standing unbraced at the end of a shift.

How does Braced and unbraced frames work, step by step?

Step 1: Map the stability system onto the erection sequence

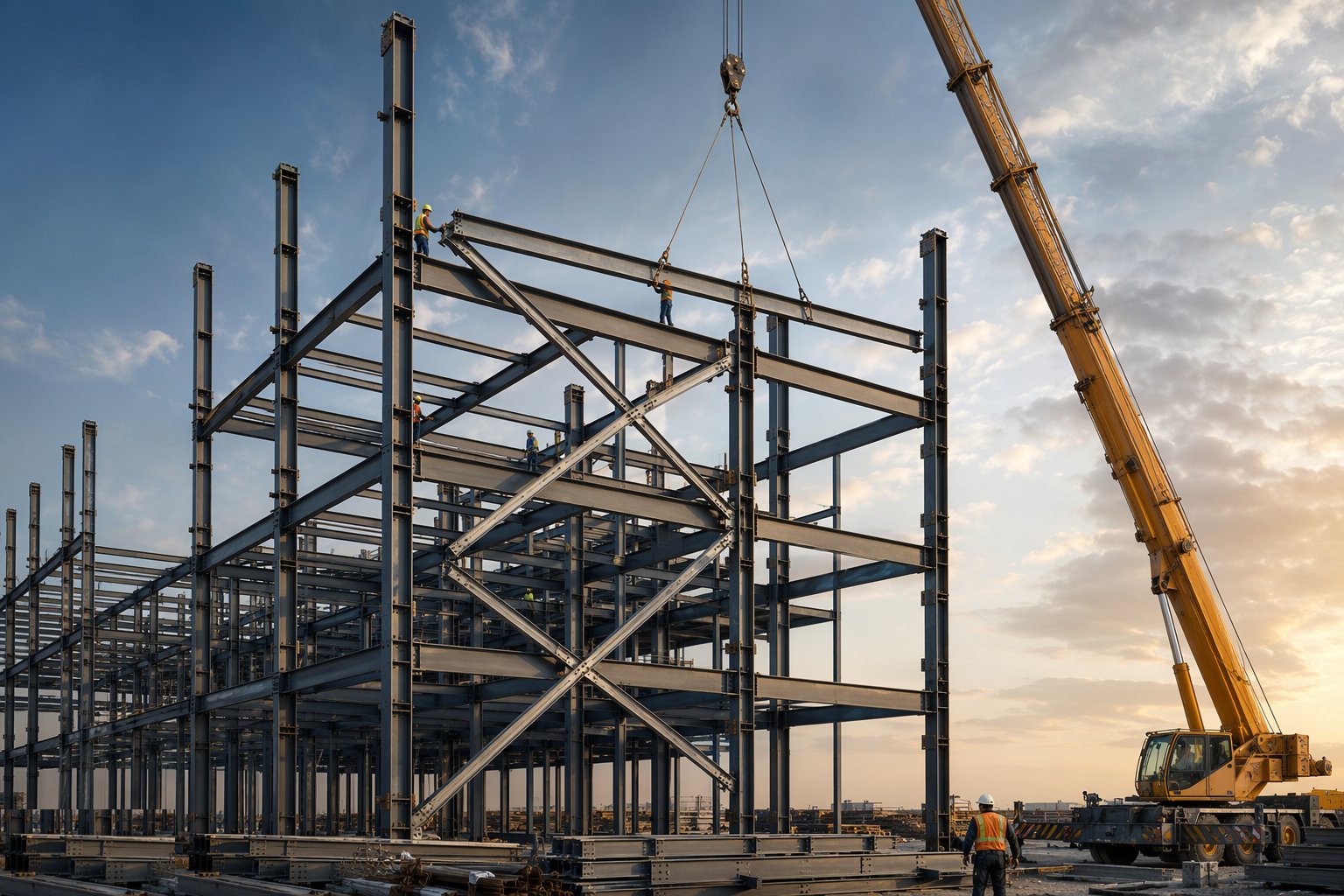

Map the stability system onto the erection sequence — Braced and unbraced frames, step 1

The permanent stability elements — braced bays, core ties, moment connections — are identified, and the erection sequence is built around them: start from the braced core or braced bays and work outward so every new member lands against a stable structure. Temporary bracing is designed for every intermediate stage, including the overnight one.

Step 2: Erect and complete the braced bays first

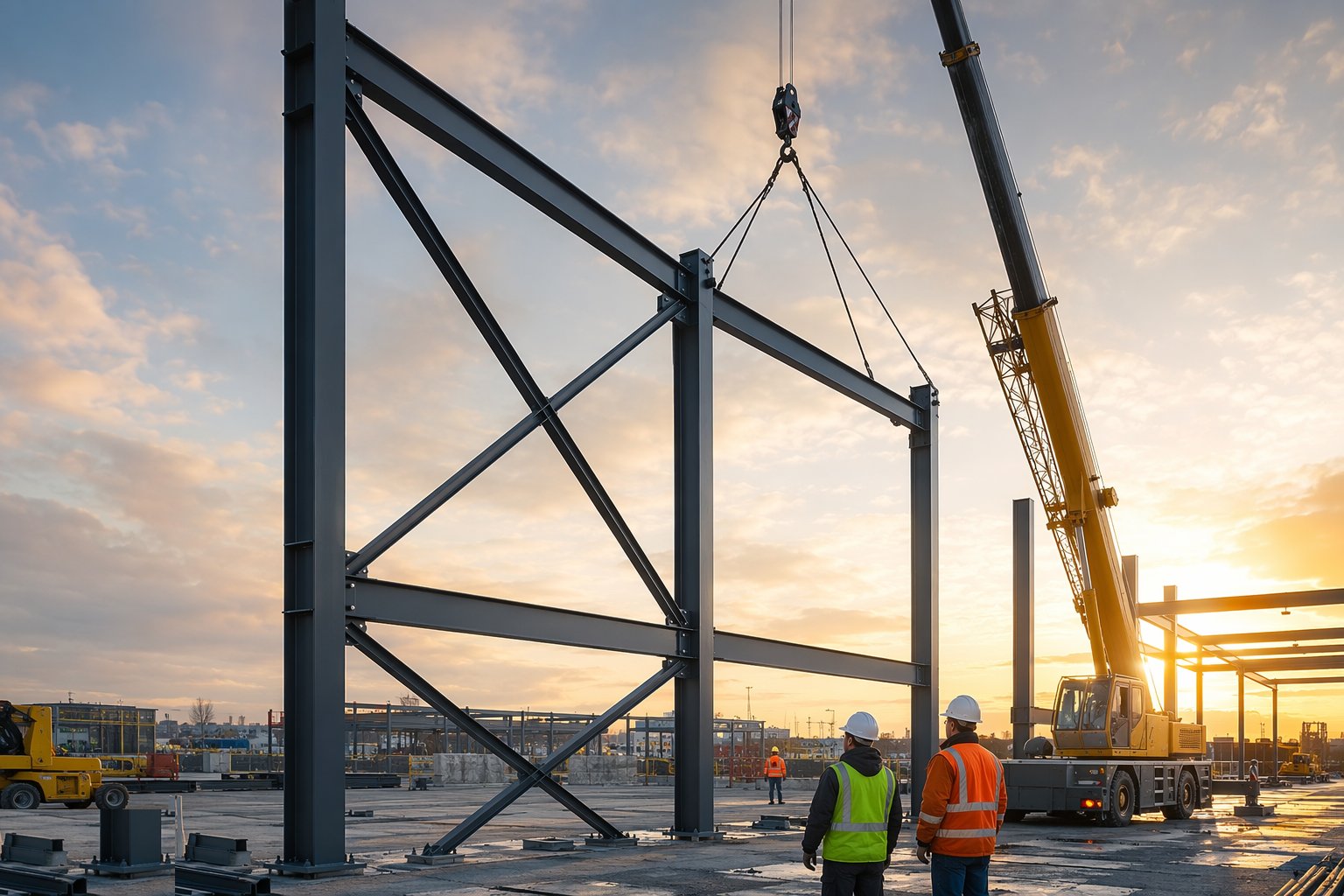

Erect and complete the braced bays first — Braced and unbraced frames, step 2

Columns and beams of the braced bays go up first; bracing members are lifted, connected and verified in the same sequence — a braced bay is only braced when the bracing bolts are torqued, not when the bracing is hanging on one pin. The survey confirms the bay is square before it becomes the reference for the rest.

Step 3: Build outward with temporary stability

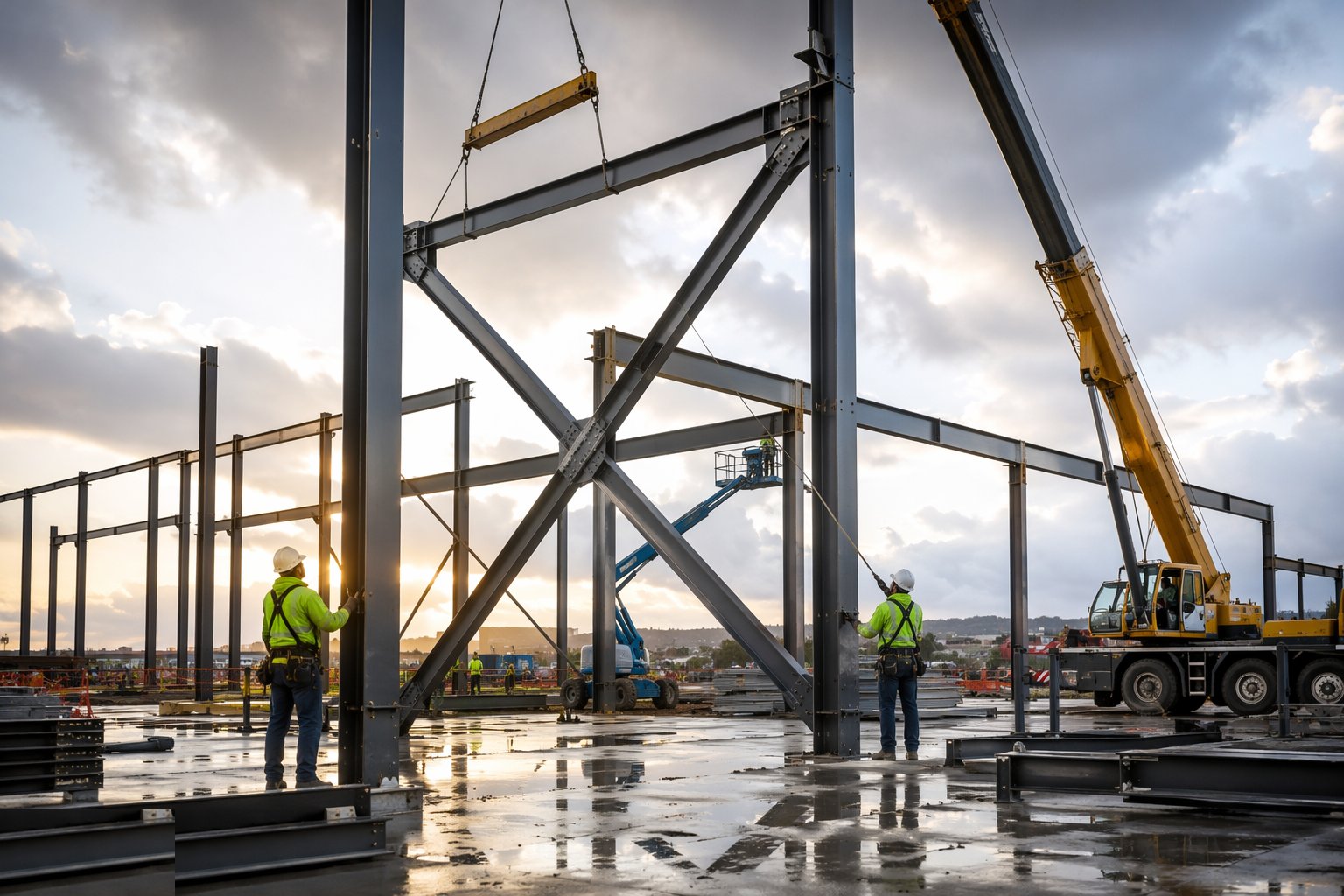

Build outward with temporary stability — Braced and unbraced frames, step 3

Subsequent bays are erected tied back to the stable core: temporary guys, plan bracing or erection ties per the method statement. Wind loading on the part-built frame is monitored against the forecast — an unclad frame is a wall of sail area, and the sequence respects weather windows.

Step 4: Make moment connections fully and verify

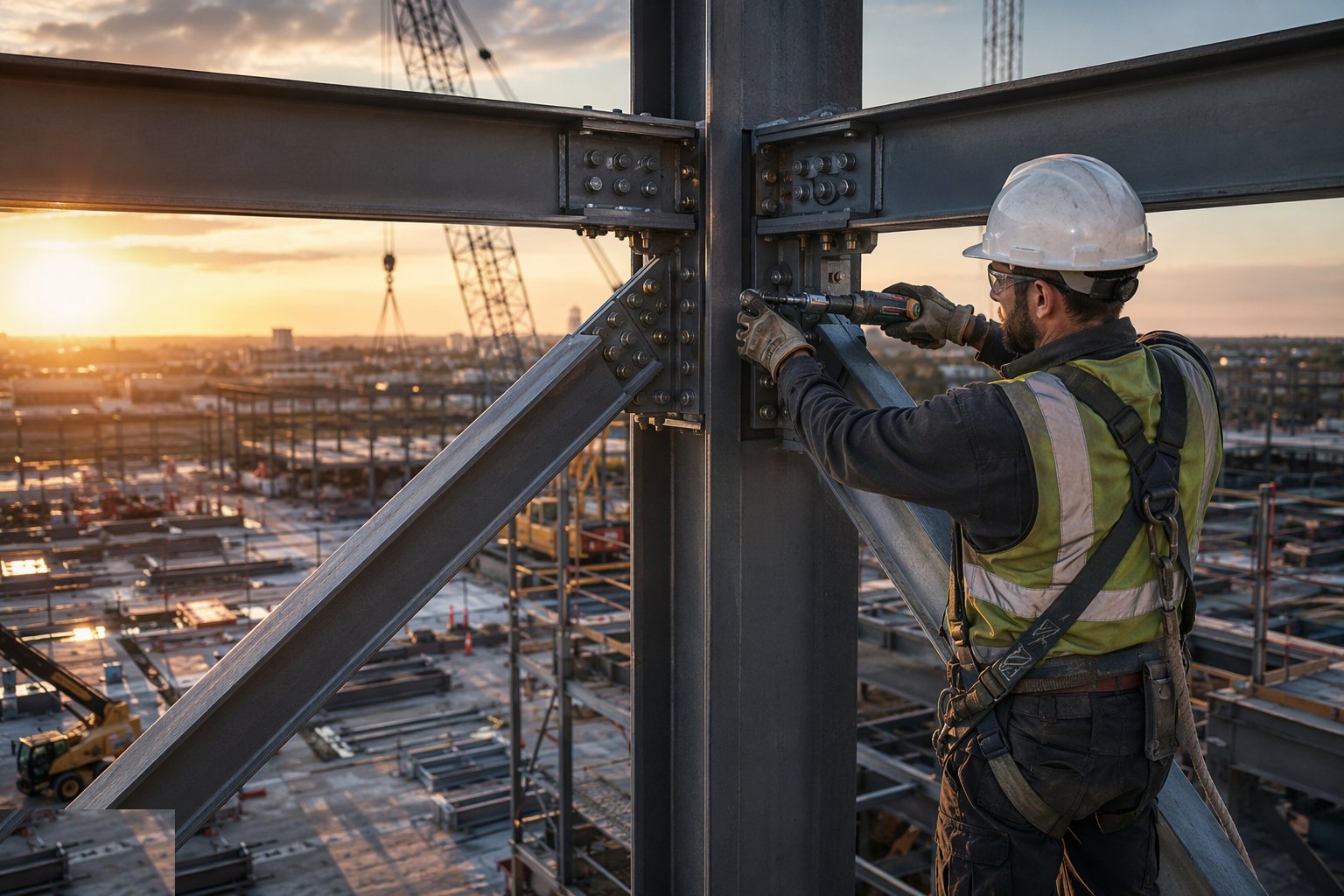

Make moment connections fully and verify — Braced and unbraced frames, step 4

In unbraced frames, moment connections — full-strength welded or extended end-plate bolted — are completed and verified per their QA regime before the bay is released as stable. Partially made moment connections are pinned connections as far as the wind is concerned.

Step 5: Verify, remove temporary bracing in sequence, and record

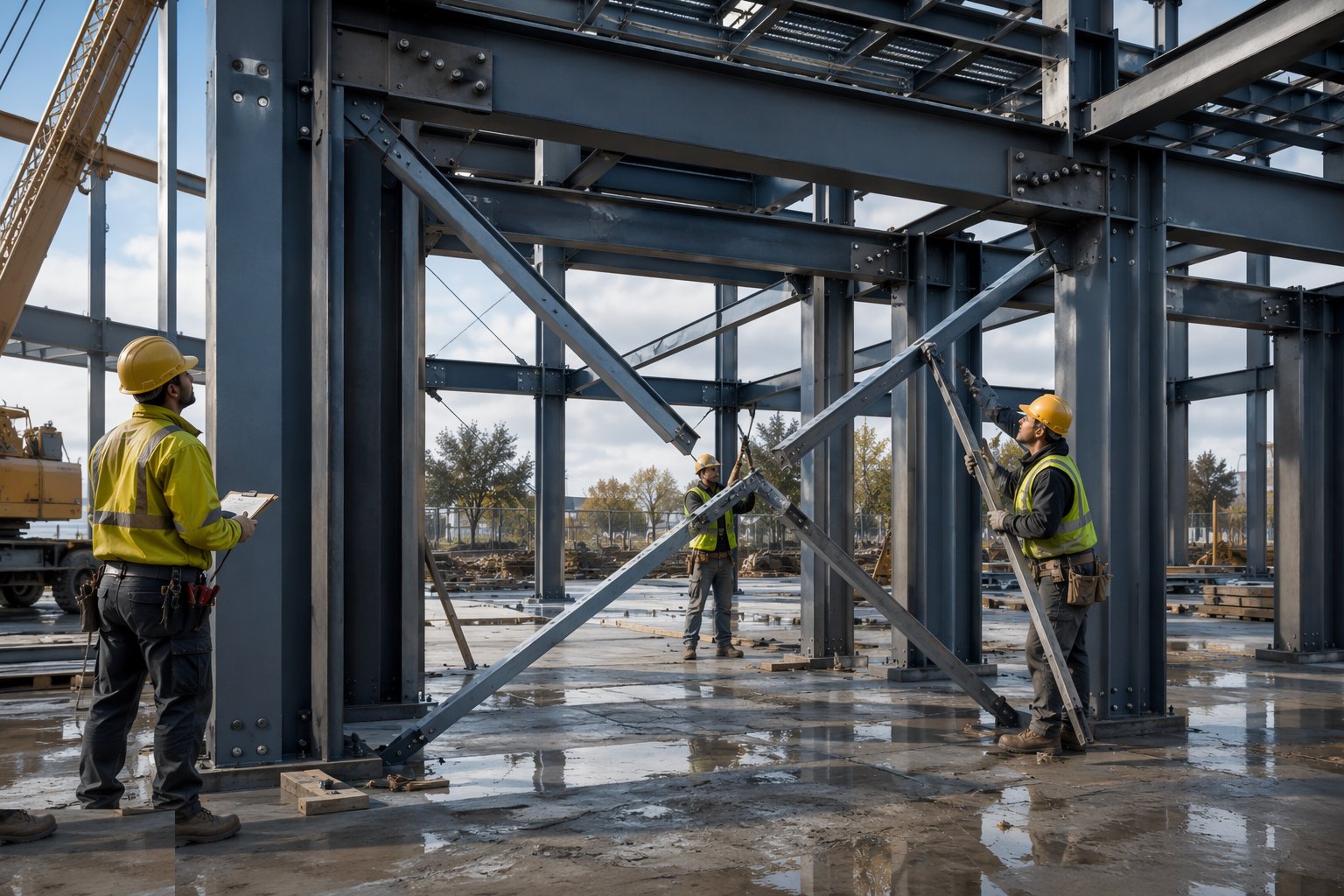

Verify, remove temporary bracing in sequence, and record — Braced and unbraced frames, step 5

As the permanent stability system completes and is verified — torqued, welded, inspected — temporary bracing is removed in the designed sequence, never ahead of it. The stability sign-off, bracing connection records and as-built survey close the frame's structural file.

What are the benefits of Braced and unbraced frames?

Braced frames: minimum steel, simple connections, fast erection
Braced frames: cores and shear walls already exist — using them costs nothing extra
Moment frames: completely open plans and full-height glazing
Moment frames: no bracing clashes with services, doors or future fit-out
Either way, the stability system defines a clear, safe erection logic

What are the limitations of Braced and unbraced frames?

Braced frames: bracing positions constrain architecture and fit-out forever
Braced frames: bracing connections and core ties concentrate load — foundation design follows
Moment frames: heavier members and expensive connections — the flexibility is paid for in steel
Moment frames: sway drift governs design and punishes cladding tolerances
Both: the intermediate stages are the dangerous ones — temporary stability is a design exercise

What is Braced and unbraced frames best suited for?

Braced: residential and commercial frames with cores or shear walls
Braced: industrial and portal structures with cladding to hide bracing
Moment: open-plan offices, glazed facades, adaptable buildings
Moment: frames where bracing physically cannot fit the plan

What plant does Braced and unbraced frames need?

Standard erection craneage with tackle for bracing members
Temporary bracing equipment: guys, strainers, erection ties
Torque and welding equipment per the connection types
Survey instruments for bay squareness and frame plumb
Anemometer and weather monitoring for the part-built frame

How is Braced and unbraced frames quality-checked?

Erection method statement with stage-by-stage stability check — signed
Bracing connection verification: torqued and marked before reliance
Moment connection QA records per the bolted and welded regimes
Bay squareness and frame plumb surveys at each stage
Temporary bracing removal log against the designed sequence
